Equipment parameter

Electric Motor

Yaskawa/Delta/Huichuan and other international and domestic first-line brand motors are stable and reliable. The Y-axis uses 1.5-2KW dual-drive motor, the X-axis uses 1KW drive motor and the Z-axis uses 400w brake motor

System

Bus control system.Friendess system\Weihong system

Rail

Taiwan HIWIN high-speed silent guide rail

Rack

Taiwan apex high precision grinding rack

Laser

MAX\ raycus, etc

Cutting Head

Raytools\wsx\ Boci Black Diamond \ Germany Prezt, etc

Water Cooler

S&A\Hanli

Machine Bed

Mortise and tenon plate welded bed

Transom

Aviation grade integrated aluminum beam

Sheet Metal

Electrostatic spraying process, with high rust resistance, longer use time

Advantages

Mortise and tenon plate welded bed

The welding structure of the bed is more reasonable, and the strength is higher, which can ensure that the bed is not deformed for 30 years, and the equipment is high precision

Aviation grade integrated aluminum beam

Viation grade aluminum beam, lighter weight, harder material, less deformation and can provide better dynamic performance, better silence effect

Integral machine

The whole machine packaging does not require a large number of external installation parts, and is clean and tidy, which is conducive to the transportation and secondary handling of equipment

Adaptive power

Suitable for 1.5-12kw fiber laser, stable and effective cutting

Dust removal system

Unique down-suction dust removal, efficient and clean, high dust removal efficiency

Module blade

Modular blade, easy daily maintenance, low damage rate, high safety

Motion parameter

Operating speed

Maximum operating speed 116m/min

Acceleration

1.2G

Cutting speed

0-60m/min

Mechanical positioning accuracy

0.03mm·m

Repeated positioning accuracy

0.05mm·m

Functional characteristics

Automatic obstacle avoidance

In case of obstacles in the cutting process, the cutting head automatically avoids, reducing the probability of cutting head damage

Automatic typesetting

Automatic arrangement of cutting workpieces, saving time and effort to reduce plate waste

High efficiency process library

The manufacturer provides an efficient process library to provide stable technical support for efficient cutting of the equipment, and the cutting speed is 10% higher than that of conventional equipment

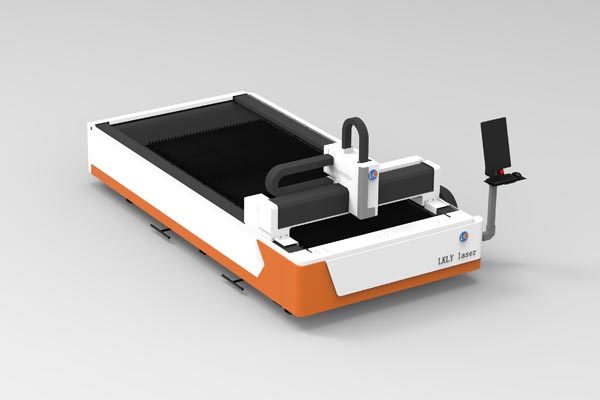

Model Selection F

LKLY-F3015

LKLY-F4015

LKLY-F6015

LKLY-F4020

LKLY-F6020

LKLY-F8020

LKLY-F6025

LKLY-F8025
